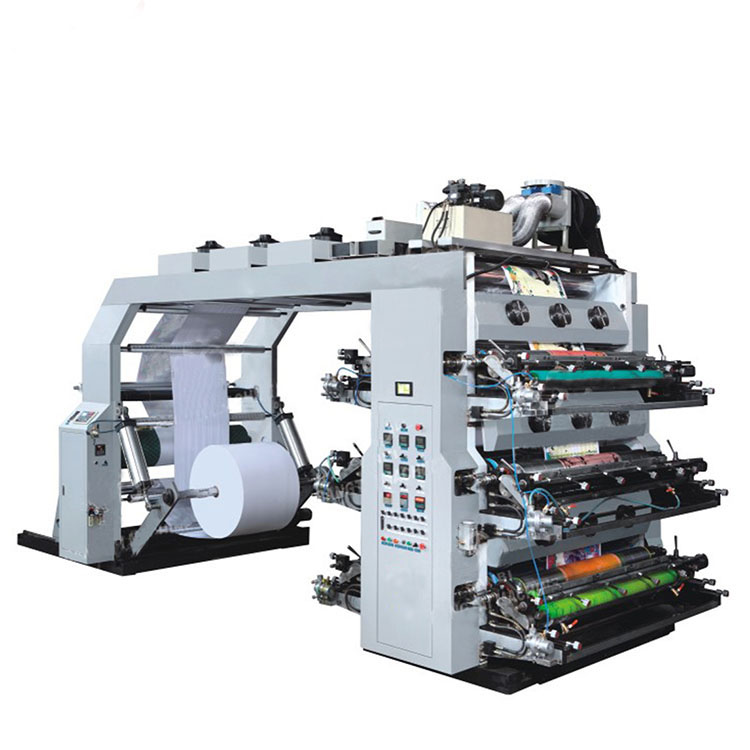

Main Features：
- The frame adopts 75MM thick wall, full casting flat plate, increase the scale and so on to enhance the stability.
- The printing roller is made of thickened steel bars, with 10 silk thick hard chrome protective layer.
- The aluminum alloy guide wheel, with hard oxidation, dynamic balance, static balance treatment.
- High-precision wider synchronous belt drive, low noise while high speed running, low vibration, makes machine more stable.
5.The plate roller gear, adopts special helical gear transmission. Each tooth 5MM, more stable printing effect, and more accurate printing length .
Main points:
-Adopts the synchronous belt drive instead of Gear drive;
-Machine running more quite, higher printing precision, good quality;
-Machine more stability;
-High Mechanical speed: 135m/min
-High printing speed: 30-120m/min ( match chamber doctor blade)
-Single unwind & Single rewind
Main Technical Parameters:
| Model | WT-B6600 | WT-B6800 | WT-B61000 | WT-B61200 |
| Max. Material width | 630mm | 830mm | 1030mm | 1230mm |
| Max. Printing width | 560mm | 760mm | 960mm | 1160mm |
| Printing length | 7.5”–40”（190-1060mm） | |||
| Printing cylinder way | Hydraulic control up and down | |||
| Drive type | Synchronous belt drive | |||
| Printing material | Film, HDPE. LDPE, LLDPE etc | |||
| Mechanical speed | 110m/min | |||
| Printing speed | 10-90m/min | |||
| Anilox roller | Metal:100-300LPI / Ceramic: 200-800LPI | |||
| Doctor blade | Open type doctor blade | |||
| Register precision | Longitudinal：±0.2mm, crosswise：±0.2m | |||
| Unwind/rewind dia. | Φ1000mm,Φ1200mm | |||
| Dry system | Electric heating | |||
| Machine power | 30kw | 30kw | 35kw | 35kw |
| Machine size
（L x W x H） |
5.0m×2.0m×3.5m | 5.0m×2.2m×3.5m | 5.0m×2.4m×3.5m | 5.0m×2.6m×3.5m |
Optional Equipment:
1) Various size of Printing cylinder
2) Double unwinder/ rewinder
3) Automatic pneumatic loading
4) Automatic pneumatic unloading
5) Crane
6) PLC: taiwan brand
7) Enclosed chamber dr blade
8) video camera monitor
9) Motor register for all directions
Attention Please
Machines can be made according to customer’s requirement.
In order to offer you the exact correct Printing Machine, please always give us the printing specifications required as below
1 the materials specification
2 unwinding width, diameter, weight
3 printing colors
4 flexo print or gravure print
5 speed
6 sample printing
