Application:

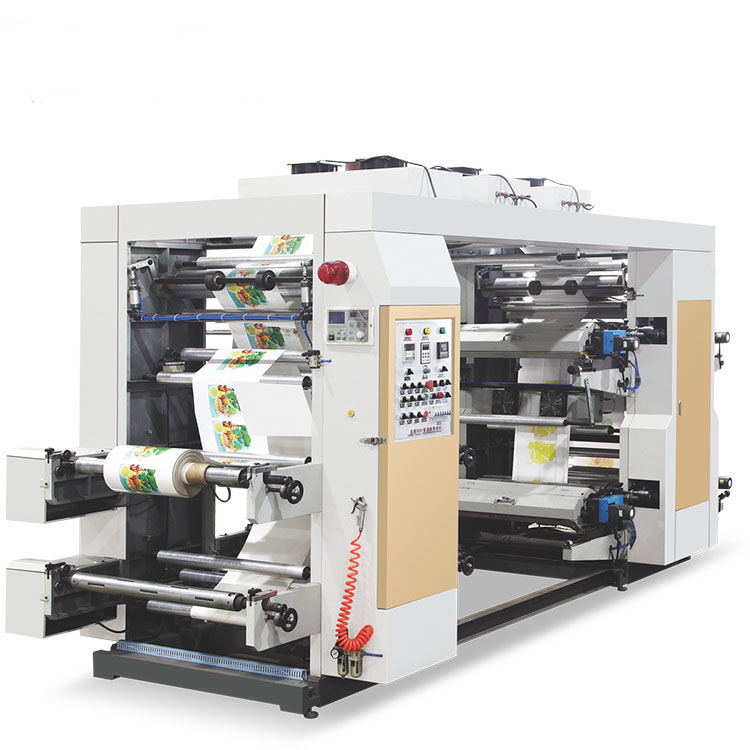

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag, glass paper ,and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Main Features:
1.Easy operation, flexible starting, accurate color register.
2.The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic operation printing cylinder lift and lower, is will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed
Main Technical Parameters:
| Model | WT-A4600 | WT-A4800 | WT-A41000 | WT-A41200 |
| Max. Material width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing width | 560mm | 760mm | 960mm | 1160mm |
| Printing length | 7.5”–40”（190-1060mm） | |||
| Printing cylinder way | Pneumatic control up and down | |||
| Drive type | Straight gear drive | |||
| Mechanical speed | 60m/min | |||
| Printing speed | 10-50m/min | |||
| Anilox roller | Metal anilox roller:100-300LPI | |||
| Unwind/rewind dia. | Φ600mm | |||
| Dry system | Electric heating | |||
| Machine power | 18kw | 20kw | 22kw | 24kw |
| Machine size
（L x W x H） |
4.5m×1.8m×2.5m | 4.5m×2.0m×2.5m | 4.5m×2.2m×2.5m | 4.5m×2.4m×2.5m |
Optional Equipment:
1) Automatic tension
2) web guide
3) Air shaft
4) various size of printing cylinder
5) Double unwinder/ rewinder
6) Automatic pneumatic loading
7) Jog register- up and down
Attention Please
Machines can be made according to customer’s requirement.
In order to offer you the exact correct Printing Machine, please always give us the printing specifications required as below
1 the materials specification
2 unwinding width, diameter, weight
3 printing colors
4 flexo print or gravure print
5 speed
6 sample printing
