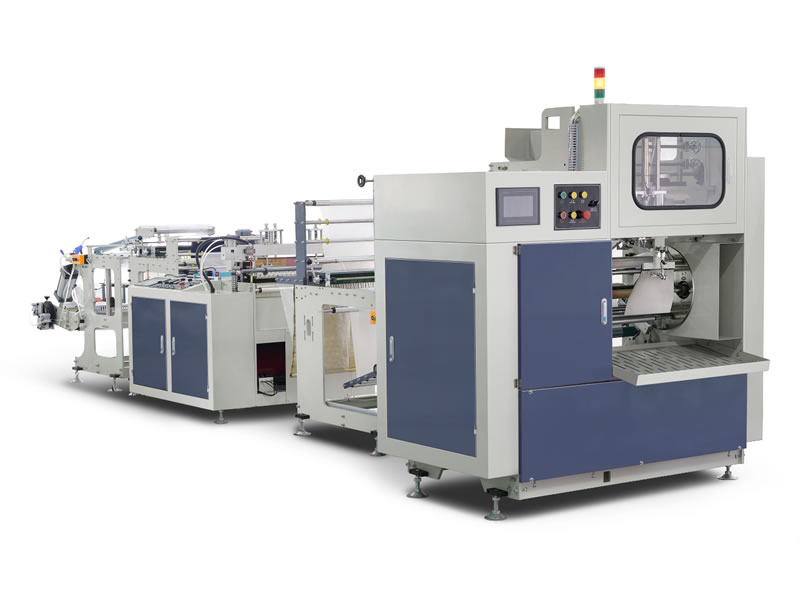

Automatic Fresh Vegetable Bag on Roll Making Machine(with Paper Core)

Equipped automatic core changing system.

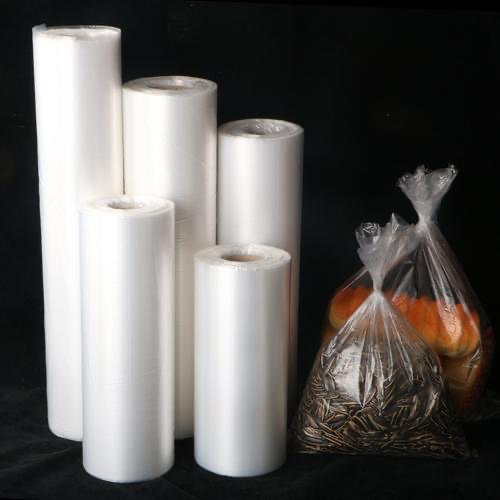

Produce food saver bags at home, fruit and vegetables bags, and other food packing bags in the supermarket.

Description:

This machine equipped automatic core changing system. It is used to produce food saver bags at home, fruit and vegetables bags, and other food packing bags in the supermarket.

Hot sealing knife and perforation knife of machine are designed together in order to avoid sealing line stretching problems, as well as improve the speed of machine.

Features:

Touch screen computer control of whole machine;

Servo motor control to make it easy to adjust the bag length and machine speed;

Equipped with EPC to ensure neat winding;

Automatic roll changing to save labor cost and time;

Automatic core changing;

Main Technical Parameters:

Model WTRB-C500 WTRB-C400*2
Width of bag making 100-400mm 100-350mm
Length of bag making 100-800mm 100-800mm
Speed of bag making 80-250 bags/min*2 80-250 bags/min*2
Thickness of bag making 0.006-0.02mm
Usage of machine produce flat on roll food bag with core
Total power                       10kw                                      18kw
Weight 1600kgs 2800kgs
Dimension of installation 6200*1600*1800mm 6200*2500*1800mm
Voltage of machine 380V, 50Hz,3-ph
Would you let us know your company name please.
Can you also give us your phone number?
Please write down the machine and model you may interest, and any special requirement. If you can tell us the products and specifications which you want to produce, that is more helpful for us to offer you the exact machines.
