Main Characteristics
This machine is applied to manufacturing printed and unprinted vest bags made of HDPE, LDPE, biodegradable film in a roll.
It adopts micro computer control for main machine, and PLC and touch-screen for punching unit, Double servo motors fixed length, set and operate.
It finishes the feeding, sealing, cutting, punching holes and final products folding, transporting and waste transporting only in one process.
It is of high degree of automation and good economic result, with most importantly stable working.
- full automatic
2.max. stable workingspeed: 600pcs/min
3. double pneumatic cylinders and seperated feeding frame, with automatic synchronous feeding.
4. double servo drivers
5. double photocells, Panasonic brand
6. with conveyor belt
7. with waste delivery
8. heat sealing & heat cutting. Heat sealing copper adopts internal heating pipe and double sides heating strips, heat cutting blades adopts variable frequency heating - Final products folding automatically
- Main machine body made by steel boardwith thickness 12mm.
- 11. Micro computer for main machine, PLC and touch screen for punching unit.
- 12. Punching unit can be moved by control button.
Main Technical Parameters

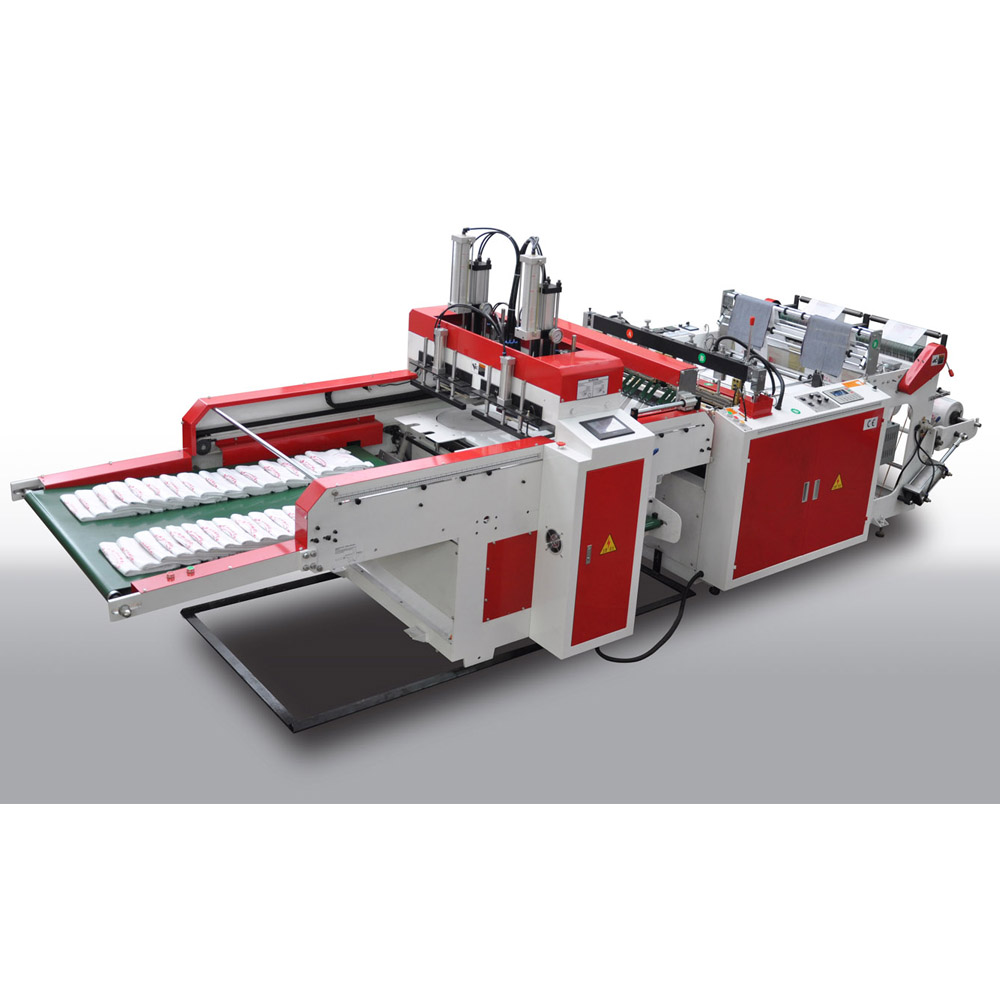

| Model | WT-HM-B450×2 |
| Max. Bag-making width | 150-420mmX2 |
| Max. Bag-making length | 320-650mmX2 |
| Bag-making thickness | 0.01-0.05mm |
| Bag-making speed | 100-300pcs/minX2lines |
| Air pressure | 7.5HP |
| Total Power | 17kw |
| Weight of machine | 2200kgs |
| Overall dimensions(L X W X H) | 7000X1800X1900mm |
