Main Features:

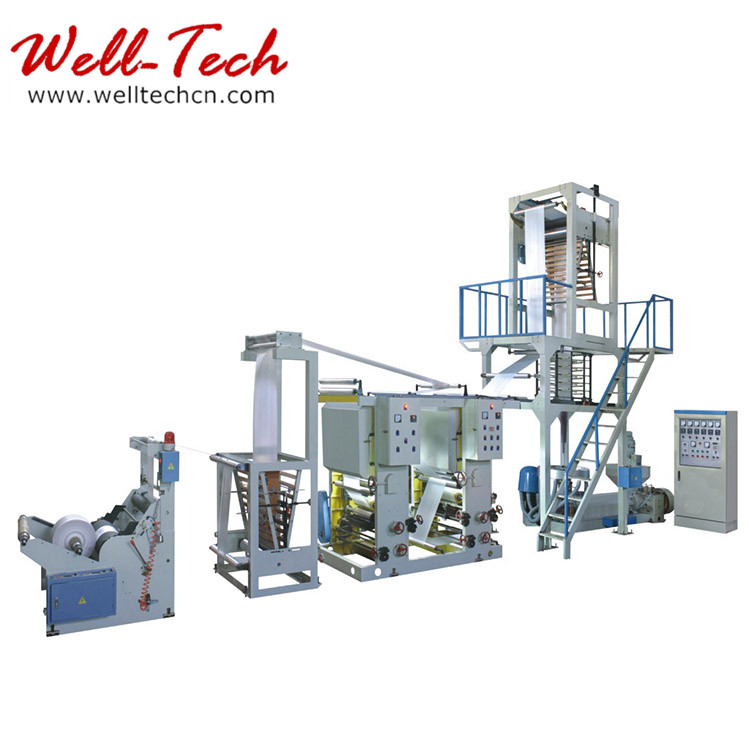

This machine adopts film blowing and gravure printing connect-line to finish the film blowing and printing in one process, which realizes reducing the cost of labor, electricity, raw material, and factory area occupation.
Optional Equipment:
1) Auto loader and Dryer
2) Cast aluminum heater
3) Air shafts
4) Die rotary device
5) Up and down traction unit
6) Alloy steel screw
7) High-speed manual net changer
8) Double electric heating drying ovens
Main Technical Parameters:
| Model | SJ50-GP2600 | SJ55-GP2800 | SJ65-GP21000 |
| Raw material | LDPE.HDPE.LLDPE | LDPE.HDPE.LLDPE | LDPE.HDPE.LLDPE |
| Screw diameter | 50mm | 55m | 65mm |
| Screw ratio （L/D） | 28:1 | 28:1 | 28:1 |
| Main motor power | 11Kw | 15Kw | 18.5Kw |
| Max output | 35kg/h | 50Kg/h | 65Kg/h |
| Die head diameter (mm) | φ60、φ 100 | φ80、φ150 | φ100、φ200 |
| Blow film width | 600mm | 800mm | 1000mm |
| Blow film thickness | 0.01-0.08mm | 0.01-0.08mm | 0.01-0.08mm |
| Printing mode | Gravure printing | Gravure printing | Gravure printing |
| Max. printing colors | 2 colors | 2 colors | 2 colors |
| Max. web width | 600mm | 800mm | 1000mm |
| Max. effective printing width | 560mm | 760mm | 960mm |
| Range of repeat printing length | 240～850mm | 240～850mm | 240～850mm |
| Max printing speed | 50-60m/min | 50-60m/min | 50-60m/min |
| Printing precision | ±0.25mm | ±0.25mm | ±0.25mm |
| Total power | 28Kw | 32Kw | 40kw |
| Weight | 3.5T | 4T | 5T |
| Overall dimensions | 6000 x 2400 x 4000mm | 6200 x 2600 x 4300mm | 6400 x 2800 x 4800mm |
