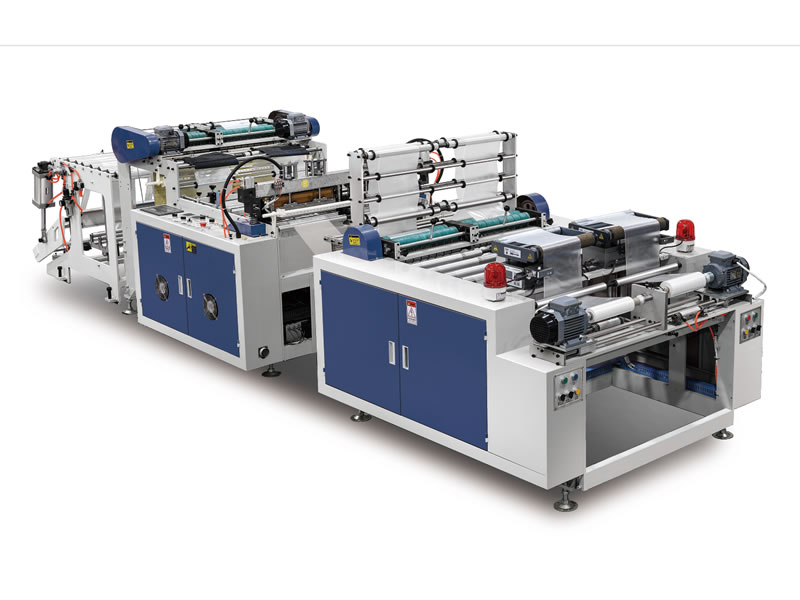

High-speed Double Lines Food Bag on Roll Making Machine (with Paper core)

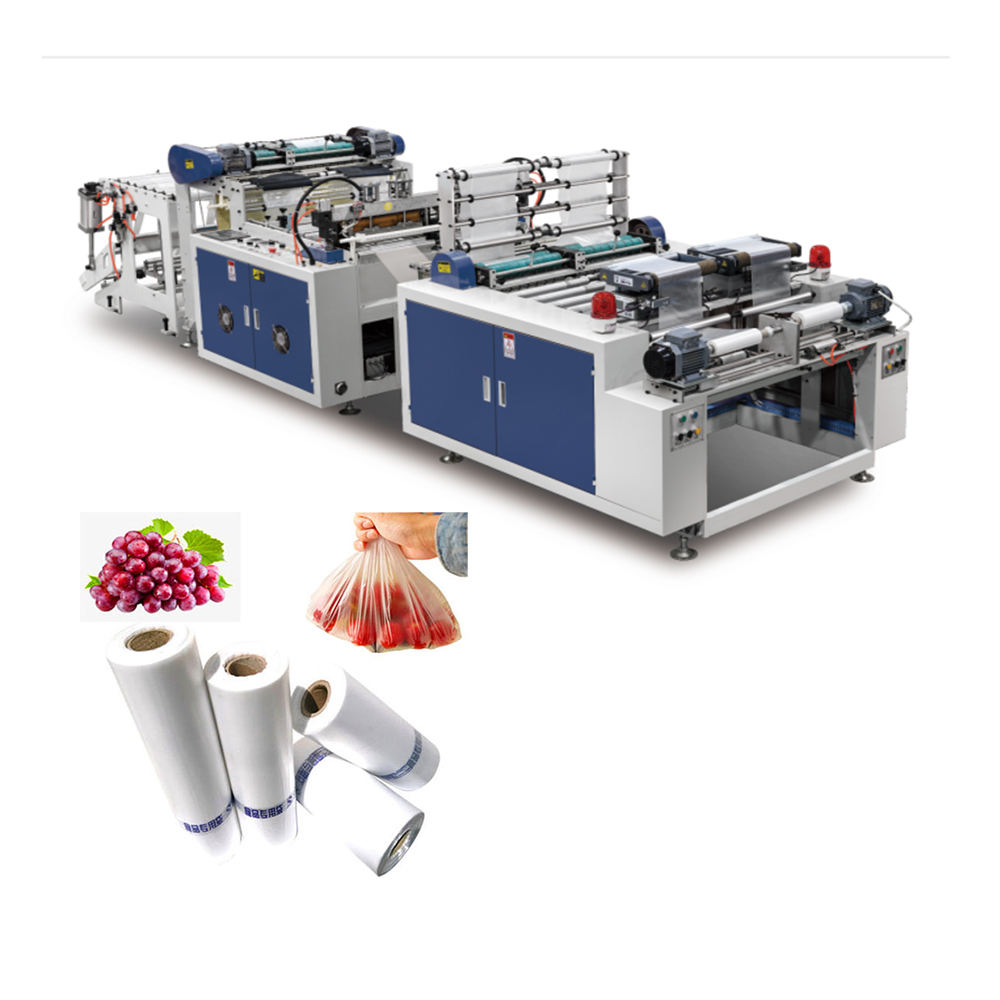

This machine is used to produce food saver bags at home, fruit and vegetables bags, and other food packing bags in the supermarket.

Touch screen computer control, Servo motor control for length cutting, EPC

Category: Tag:

Application
This machine is used to produce food saver bags at home, fruit and vegetables bags, and other food packing bags in the supermarket.

Features

Touch screen computer control of whole machine;

Servo motor control to make it easy to adjust the bag length and machine speed;

Equipped with EPC to ensure neat winding;

Machine video link: https://youtu.be/JVpOzYxK5qY?si=wKOAk8LbNkLCtFwe

Main Technical Parameters

Model WTRB-D400*2
Max. Width of Sealing &Cutting(mm) 100-350
Max. Length of Sealing & Cutting(mm) 100-800
Speed of Bag-making (pc/min) (80-250)*2lines
Max. Linear Speed 120m/min (one minute one and half a roll*2lines)
Bag Making Thickness 0.006-0.02mm
Number of Strip(pc) 2
Type of Bag Rolling Star Sealing or Flat Bottom Bags
Total Power 18
Weight(kg) 1500
Overall Dimension(L x w x h)mm 6000*1600*1800mm
