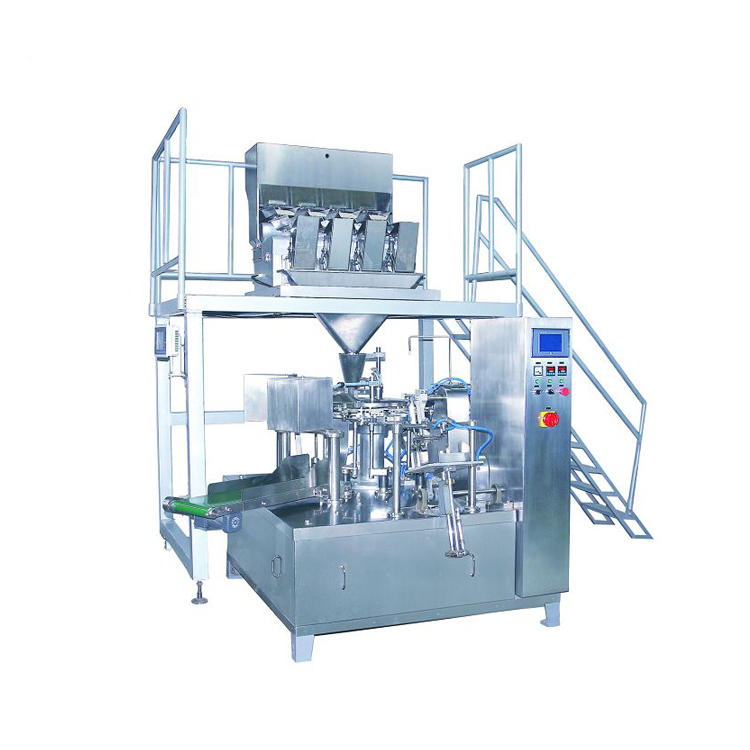

Granules Pouch Rotary Packing Machine

Application Area:

WT6/8-200/300C-G This line is mainly equipped with rotary packing machine, 4-head combination weigher, working platform, which suitable for all kinds of granules, such as detergent powder, rice, chicken essence, monosodium glutamate, seeds, sugar, fodder, sesame seeds etc…

Different pouches:

Stand up pouch, stand up pouch with spout, Doypack pouch, Gusset stand up pouch with zipper, 4-side sealing pouch, Zipper pouch, etc premade pouches.

Main Features:

1. To reduce production cost and administration cost. One packing line can deduct 4-10 workers. Investment cost can return with 1-2 years.
2. Easy to operate. It adopts PLC control, human-machine interface operating system, to make the operation easy and intuitive.
3. Convenient to adjust. The replacement of species can be completed within 2 Only one minuteis needed to adjust the machine splint.
4. A sound prevention system to protect qualified product rate, to avoid waste of bags or materials.
5. The pack machine parts made of stainless steel 304 or food-degree plastic according with food hygienic requirement, to ensure the health and safety of materials and products.
6. High degree of automation. The whole process of weighing and packaging is unmanned operation. Automatic alarm system is adopted too.
7. Some imported engineering plastics without refueling, to reduce the pollution of materials.
8. Oil-free vacuum pump is adopted to avoid contamination of the production environment.
9. The use of combination weigher to get accurate measurement
10. Waterproof design can be rinsed with water, to reduce cleaning difficulty, and increase the machine life.

Safety Device:

• No pouch or open error, on filling.
• No pouch or no filling, no sealing.
• No coding ribbon, Emergency stop and alarm.
• The safety door open, alarm(option)
• The air pressure not enough, alarm.
• The sealing temperature anomaly, alarm

Main Technical Parameters and Configuration:
